1. Introduction

The development of a metal powder material is mainly focused on ensuring high strength by changing alloy design and improving process. However, due to the rapid development of electricity, electronics, information communication, and biotechnology in recent years, there is a growing need for high-function powder with improved electrical, magnetic and optical properties as well as high strength [1]. These characteristics can be achieved only in nano-size particles rather than in conventional micronsized powder. In particular, the metal nanoparticle has a new physical property that is not exhibited in the conventional metal powder due to the decrease in volume characteristics and surface characteristics and the increase in the surface area as the particles become finer in nano size. As a result, as a next-generation material, it is expected to contribute to generating new demands across industries such as high-strength mechanical parts, catalysts, medicine and biotechnology, etc. The nickel nanoparticles to be fabricated in this study has excellent magnetic properties and reactivity, so it can be used as the material for high-performance electrode materials, functional fiber materials, conductive materials, and catalyst (general use, redox agent, photocatalyst, hydrogen, ammonia, ethanol synthesis) [2-4]. Many studies are being conducted on the production of metal nanopowders especially in Japan and the United States, but in Korea there are seldom studies on the production of metal nanoparticles in Korea due to relatively insufficient basic studies, and most of the metal nanopowders are being imported [5].

As a result, many studies are being conducted on the metal nanopowder, but due to a limit in the manufacturing and storage, its commercial application is experiencing difficulty. In the case of chemically stable ceramic materials, it is easy to manufacture and store easily through various methods. However, in the case of the metal nanoparticle, it is difficult to maintain its nano structure due to the growth of particles during sintering and its electrical and magnetic properties are degraded due to the wide surface area which leads rapid reaction with oxygen [3]. As when the metal nanopoweder is oxidized, its electrical and magnetic properties are degraded, and sintering for bulk production is also difficult, there are many limitations in its application.

The manufacturing process of nanometer metal powder can be divided into physical synthesis and chemical synthesis. Physical synthesis includes gas evaporation condensation and mechanical synthesis. Chemical synthesis includes gas phase synthesis, liquid phase synthesis, and solid phase synthesis. First, the gas-evaporation condensation is a method of obtaining the nanopoweder by evaporating and condensing the raw material by heating the raw material in an inert gas atmosphere. The purity of the particles is high and the size is uniform, but the yield is low and the production speed is slow, so there is a disadvantage that the economical efficiency is low. Mechanical synthesis is a commonly known ball-milling process, and is a typical example of Top to Bottom method. It is a process of manufacturing metal nanopoweder by applying a physical impact to a raw material using a crushing ball. The process is simple and has many advantages in mass production. However, when a physical impact is applied, there is the high possibility that the raw material is oxidized and impurities may be generated. In addition, it is difficult to uniformly control the particle size of the powder, and the produced powder is isotropic and has a low residual magnetic flux density, so it is not suitable for the magnetic material [6]. On the other hand, the liquid phase reduction is a chemical synthesis method of producing a metal or an oxide powder in an aqueous solution by adding a precipitant or a reducing agent to the metal salt. It is a typical example of Bottom to Up method. Since the metal is synthesized from the ionic state, the particle size of the powder can be controlled to be uniform and small, and the purity and yield are higher than other processes. In addition, the production speed is fast and the particle size can be easily adjusted according to the concentration of the reducing agent. The previous studies related to the production of nanopoweder by liquid reduction were focused on cobalt nanoparticles and silver nanopoweder depending on the kind of metal. These studies have been focused on the size and shape of the particles, but filtration and dilution were required during process in most studies, which resulted in a decrease in economic efficiency [7-11].

Therefore, in this study, we used the liquid phase reduction method to manufacture nickel nanopoweder with high purity and uniform size. Experiments were conducted by setting the reaction rate change according to the liquid reduction temperature and the particle size change according to the amount of reducing agent added as variables. This study is meaningful in that it is intended to fabricate the nickel nanoparticle having excellent physical properties without filtration and dilution process, which was not solved in the previous studies.

2. Materials

2.1 Raw Samples and Reducing Agent

NiSO₄ (Ni6%) solution used for fabricating nickel nanopowder using the liquid reduction method was prepared as a raw material. The NiSO₄ solution is a nickel precursor solution obtained by leaching sulfuric acid and refining the cathode active material (LiNiO2) obtained from the spent battery scrap. The components of the NiSO₄ solution were analyzed by ICP-MS (Inductively Coupled Plasma with Mass Spectrometer) and results of analysis are listed in Table 2 below. Table 1

Table 1

Application of metal nanopowder

Table 2

Chemical composition of NiSO₄

Hydrazine monohydrate (N₂H₄·H₂O) was used as a reducing agent to be added in the liquid reduction process, and sodium hydroxide (NaOH) was added to prepare the hydroxide

2.2 Experimental apparatus

A magnetic stirrer is used to maintain the reaction condition of NiSO₄ solution and reducing agent constantly. Since it is equipped with hot wire, it is possible to stir while applying heat. A beaker in which a NiSO₄ solution and a reducing agent is contained for reduction reaction, and a magnetic bar that stirs NiSO₄ solution and reducing agent and rotates at a constant speed by a magnetic field. A magnetic field generated in the motor of the apparatus rotates the magnetic bar to stir the sample in the beaker.

2.3 Experimental method

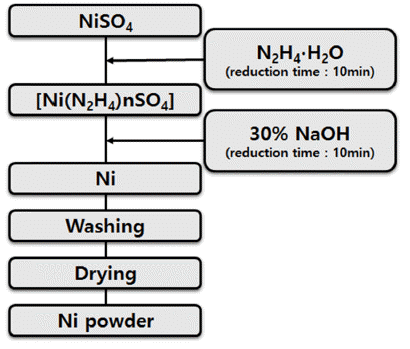

Fig. 1 is a procedure to fabricate nanosized nickel powder from the cathodic material of lithium ion battery. NiSO₄ solution and hydrazine monohydrate were mixed at a volume ratio of 10:3 and a reduction process was performed using a magnetic stirrer to synthesize a nickel hydrazine complex ([Ni(N₂H₄) nSO₄]). Sodium hydroxide (NaOH) was added to generate nickel hydroxide, and nickel particles were generated by the reduction reaction of nickel hydroxide and hydrazine. In this experiment, it was confirmed that the reduction reaction did not take place if a heat source was not applied externally when adding sodium hydroxide. Therefore, the experiment was performed while applying heat in a magnetic stirrer. In order to confirm the temperature at which the most effective reaction takes place, a reducing process was performed while measuring the temperature with a thermometer. After the reaction was completed, the recovered nickel powder was washed with distilled water and then dried. The overall nickel nanopoweder production reaction formula used in this experiment is as follows (1) - (3).

Fig. 1

Experimental procedure.

(1)

NiSO4 + nN2H4→[Ni(N2H4)nSO4]

(2)

[Ni(N2H4)nSO4] + 2NaOH→Ni(OH)2 + nN2H4 + Na2SO4

(3)

Ni(OH)2 + N2H4 + H2O→Ni + NH3 + (NH4OH) + O2

Experiments were performed to determine the particle size change according to the amount of NaOH (30%) solution added after deriving the optimum temperature in the above experiment. At this time, the experiment was performed by setting the weight ratio of NiSO₄ solution and sodium hydroxide solution to 10:1, 10:1.25 and 10:1.5, respectively. The nickel powder which had been reacted was washed with distilled water and dried.

The powder morphology and microstructure of the recovered nickel nanoparticle were analyzed using Field Emission Scanning Electron Microscope (FE-SEM), and the average particle size distribution of the nickel powder was analyzed using Laser Diffraction Particle Size Analyzer (PSA).

3. Results and Discussion

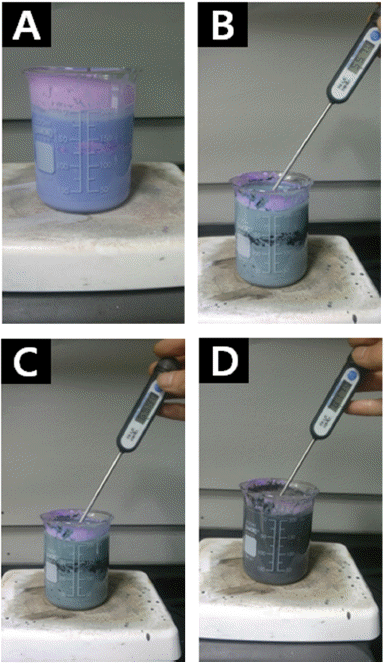

Fig. 2 is a photograph of the reduction process for 10 minutes by stirring the solution whose temperate was set differently after the addition of NaOH (30%) to NiSO₄ with ratio of 1 to 10. The temperature of the solution was 18.7ºC, 55.7ºC, 65.1ºC and 81.7ºC respectively from the left to the right. It shows that almost no reduction reaction occurred when the experiment was performed at room temperature (18.7ºC) after addition of NaOH to the nickel hydrazine complex which had been synthesized. Unlike A, in D, stirring was performed while applying heat after adding NaOH, and Fig. 2 shows that the reduction reaction prºCeeded faster than other conditions. As a result, it was found that the reduction reaction of NiSO₄ solution ºCcurred faster when the temperature of NiSO₄ solution was higher. However, when the temperature of the solution was over 88ºC due to excessive heating, the solution was boiling over, indicating that it is unnecessary to overheat.

Fig. 2

Difference in reduction rate according to the temperature of solution (a) 18.7ºC, (b) 55.7ºC, (c) 65.1ºC, (d) 81.7ºC.

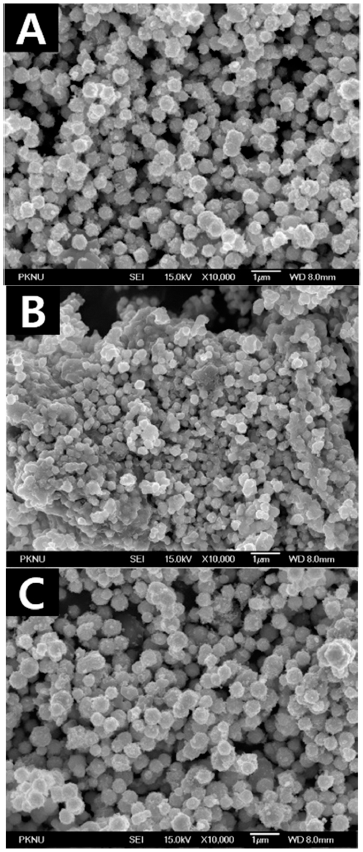

Fig. 3 FE-SEM images of the nickel powder recovered after reducing NiSO₄ and NaOH at the weight ratio to 10:1, 10:1.25, and 10:1.5, respectively and the reduction was conducted at 81.7ºC for 15 minutes. As a result, when NaOH was added to nickel hydrazine complex ([Ni(N₂H₄)nSO₄]) at the weight ratio of 10:1 to NiSO₄, the nickel powder with the smallest particle size of 100~200 nm could be recovered, but when NaOH was added at the weight ratio was 10: 1.25 or 10:1.5, the nickel powder having a size of 200~300 nm was formed. As the amount of NaOH added increased, smaller nickel powders of less than 100 nm were formed, but larger particles were formed in the end due to agglomeration between particles.

Fig. 3

Image of nickel nanopower taken by FE-SEM (a) NaOH (10:1), (b) NaOH (10:1.25), (c) NaOH (10:1.5).

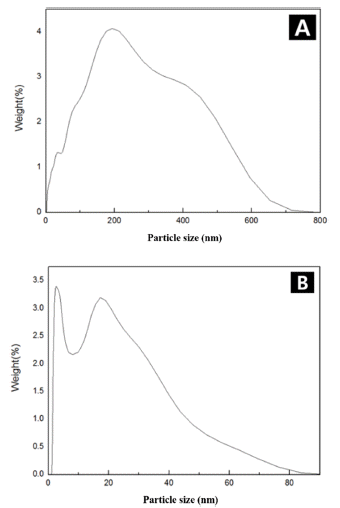

Fig. 4 shows the results of analyzing the particle size using a laser diffraction particle size analyzer at a weight ratio of 10:1 and 1:1.5. Similar to the results of the FESEM analysis, when more NaOH is added, more micronsized Ni particles are present than nanoparticle-sized Ni powder. Furthermore, there can be some methods to control agglomeration of nanoparticle with addition of polyvinyl pyrrolidon (PVP) as a chemical dispersant and using ultrasonic dispersion as a physical process.

Fig. 4

Results of PSA analysis (a) NaOH (10:1), (b) NaOH (10:1.5).

4. Conclusion

We conducted this study to fabricate the nickel nanopowder from NaOH solution using liquid reduction method. To achieve this purpose, we performed experiments to analyze the reduction reaction rate according to the liquid reduction temperature and the particle size of nickel powder according to the addition of NaOH. We used the hydrazine monohydrate (N₂H₄·H₂O) as a reducing agent in the liquid reduction prºCess, and added sodium hydroxide (NaOH) to prepare hydroxides. The results of the experiment are as follows.

Hydrazine monohydrate (N₂H₄·H₂O) was added to the NiSO₄ solution and reacted with a magnetic stirrer to form hydrazine complex ([Ni(N₂H₄)nSO₄]).

The reaction did not ºCcur at room temperature when NaOH was added to the hydrazine complex ([Ni(N₂H₄) nSO₄]), and the temperature at which the reduction reaction most likely ºCcurred was 81.7ºC.

The particle size of nickel powder according to the amount of NaOH added was analyzed by FE-SEM and PSA. As a result of analysis, it was found that the smaller the amount of NaOH added, the smaller size nickel powder was formed, but 200~300 nm nickel powder was synthesized due to the agglomeration between particles. The purity of nickel powder was examined by ICP and XRF and it was found to be 99.62 wt.% with minor purity of oxygen, nitrogen and sodium etc.
