1. Introduction

Pure SnO₂ is an N-type semiconductor (E_g ~3.6eV) with a tetragonal structure of rutile phase. The chemical bonding nature of SnO₂ is covalent rather than ionic. During sintering, the non-densifying mechanism for mass transport, such as surface diffusion and evaporation-condensation, is dominant, which makes it very difficult to densify pure SnO₂. However, this poor densification can be useful for the fabrication of SnO₂ with a porous microstructure. Porous SnO₂ is often used in electronic devices, such as gas sensors, electrocatalytic electrodes, electro-optical devices, and photovoltaic cells [1-4]. Meanwhile, dense SnO₂ ceramics is applicable to other electronic devices like varistors [1].

Research has shown that the addition of various oxides, such as CoO, CuO, MnO, ZnO, and Nb₂O₅, to SnO₂ leads to high density [4-7]. In the case of CoO-doped SnO₂, 99% of the theoretical density was obtained during sintering at 1400°C [7]. In this system, grain boundary diffusion is activated by vacancies near to the grain boundary. Here, vacancies were created by the difference in valence between Sn⁴⁺ and Co²⁺ as a solid solution. In the case of CuO-doped SnO₂, shrinkage was initiated at about 1000°C, and high density of 98% of theoretical density was achieved at 1400°C [6]. This system is known as the activated sintering system wherein grain boundary diffusion operates at a low temperature. Further, when doped with TiO₂, SnO₂ forms an isostructural solid solution with TiO₂. Because of this, SnO₂ and TiO₂ have the same structure as a rutile. In this system, shrinkage also started at about 1000°C during sintering. In this case, operating mass transport mechanism is the grain boundary diffusion as well [2].

Most electronic devices based on SnO₂ have a porous microstructure with a porosity of > 40%, which is very desirable for gas sensor applications [1]. However, for the vast majority of applications involving porous materials, it is desirable to have high mechanical strength paired with high porosity. In the case of pure SnO₂, it is necessary to use a high sintering temperature of ~1300°C to obtain a porosity of > 40% [1, 4]. As mentioned previously, the above three systems have the same mass transport path as the grain boundary diffusion at low sintering temperatures. It is well known that the activation energy required in volume diffusion is higher than that required in grain boundary diffusion. This means that temperature sensitivity is higher in grain boundary diffusion than it is in volume diffusion. Therefore, the present study investigated the sintering behavior and dielectric properties of SnO₂ ceramic with a porous microstructure while considering temperature sensitivity at a low temperature of 950°C. Sample compositions were chosen as SnO₂-CoO(0.3wt%)-CuO(1wt%) with varying contents of TiO₂. These compositions were intended to take advantage of the synergistic effect of the grain boundary diffusion. The TiO₂ contents were controlled according to the desired microstructure design. As a result, porous microstructures with porosity of ~40% were obtained. The main advantages of this approach are its simplicity, low cost, and its ability to achieve a controlled microstructure by TiO₂ content.

2. Experimental Procedure

SnO₂ (Samchun pure chemical Co., South Korea; purity: 99.0%), CoO (Sigma Aldrich Co., China: < 325 mesh), CuO (Kojundo chemical Co., Japan; purity: 99.9%, 2 µm), and pure rutile TiO₂ (Kojundo chemical Co., Japan; purity: 99.9%, rutile, 2 µm) were obtained as raw materials. Mixed powders of SnO₂-CoO(0.3wt%)-CuO(1wt%)-TiO₂ were then prepared through wet-milling for 24 h in a polyethylene bottle. Zirconia balls and an ethyl alcohol were used as the milling media and the solvent, respectively. After ball milling, the powders were dried at 90°C for 24 h. The dried powders were then crushed and sieved (500 mesh). Next, ~2 g of each powder was uniaxially pressed into pellets under 0.5 MPa, after which the pellets were cold isostatically pressed under 100 MPa for 3 min. The green pellets had a diameter of ~13 mm and a thickness of 4 mm. The green compact pellets were sintered at 950°C under air in a MoSi₂ resistance box furnace. The heating and cooling rates were both ~5°C/min.

This heating at 950°C proceeded for 8 h. For the samples used in the experiment described herein, the amounts of CoO and CuO were kept at 0.3 and 1 wt%, respectively. The contents of TiO₂ were varied up to 0.04 mol for the composition of Sn_1-xTi_xO₂. The developed phases of the sintered body were analyzed using standard X-ray diffraction with a diffractometer (D/Max 2000, Rigaku Co., Japan). The sintered densities were obtained by the Archimedes method using distilled water as the immersion medium. Each data point for density was determined based on average measurements of three similar specimens. The BET surface area and BJH pore size distribution were measured with nitrogen adsorption isotherm at 77K using a specific surface area analyzer (3flex).

The fractured surfaces of the sintered samples were observed through micrographs taken by scanning electron microscopy (VEGA II LMU, TESCAN). The grain sizes were determined from the SEM micrographs using the image analysis software package (VEGA II, TESCAN). To measure capacitance, an Ag electrode material (Ferro Co., USA) was pasted on the polished surface, which was then baked at 400°C for 10 min. The capacitance was measured at room temperature over a frequency range between 10² and 10⁶ Hz using a source meter (2400, Keithley). The dielectric constant was calculated using the following equation ε_r = Cd/ε_oA, where ε_o is the dielectric constant in vacuum, C is the measured value of sample capacitance, and d and A are the thickness and area of the current samples, respectively.

3. Results and Discussion

3.1 The solution effect of TiO₂ in SnO₂-CoO(0.3wt%)-CuO(1wt%) samples

Fig. 1 shows the X-ray diffraction patterns of (Sn,Ti)O₂-CoO(0.3wt%)-CuO(1wt%) samples with varying TiO₂ contents. The specific compositions of the present samples are Sn_1-xTi_xO₂-CoO(0.3wt%)-CuO(1wt%), where x = 0, 0.01, 0.02, and 0.04. The results only identified SnO₂(rutile) and CuO peaks. Therefore, the addition of TiO₂ into SnO₂ does not lead to the emergence of any second phases, and the TiO₂ is dissolved into the SnO₂ matrix as (Sn,Ti)O₂. The solid solution effect is shown in Fig. 1(b). The SnO₂(rutile) peak is slightly shifted to the left (low angle side). This is why the lattice parameters of SnO₂ unit cell change in response to the solution of TiO₂. Based on the result of Bueno’s work [2], the a and c lattice parameters of the SnO₂ unit cell slightly decreased when the TiO₂ was solved into the SnO₂ matrix. Moreover, CoO is considered to have been dissolved into the SnO₂ matrix, because CoO-related secondary phase was not detected under X-ray resolution. The present result is consistent with previously described results [2, 6, 7]. Therefore, the current systems are considered to exist as a mixture of SnO₂ and CuO.

3.2 Densification

Pure SnO₂ is difficult to sinter, even at the high temperature of 1400°C [2]. However, in the case of the SnO₂-CuO system, shrinkage was produced even at a low temperature under 1000°C [6, 8]. The present experiment was carried out at 950°C for 8 h. Fig. 2 shows sintered densities for the SnO₂-CoO(0.3wt%)-CuO(1wt%) system with varying TiO₂ content. The sintered density was improved with increasing TiO₂ content up to 0.04 mol. The X-ray results indicate that the present system consists of the mixture of both SnO₂ and CuO.

The SnO₂-CuO system was proven to be an activated sintering system at low temperature [6]. Activated sintering features improved grain boundary diffusion at a low temperature, at which volume (lattice) diffusion is not operable. In this system, CuO serves as an activator to improve the grain boundary diffusion. Therefore, in the case of the current system as well, the improved grain boundary diffusion is considered to be responsible for the enhanced densification at the low temperature, because pure SnO₂ has a non-densifying mechanism—involving evaporation-condensation and surface diffusion—even at high temperatures of >1400°C [2]. CoO is also an effective additive to improve the densification of SnO₂. In CoO-doped SnO₂ matrix, a solid solution is formed by substituting Sn⁴⁺ ions for Co²⁺ or Co3+ ions [1, 7]. According to the defect chemistry, oxygen vacancies near the grain boundary are created by the above substitution, thus leading to enhanced densification of SnO₂ through the grain boundary diffusion. From the X-ray data, CoO-related secondary phase was not found, thus indicating that CoO appears to have dissolved into the SnO₂ matrix. It is therefore believed that the CoO solution affected the enhanced densification of SnO₂ matrix. Further, SnO₂ and TiO₂ have the same structure as the rutile phase along with the same cation valence of +4. The chemical bonding nature of SnO₂ is more covalent than that of TiO₂. Therefore, when TiO₂ is dissolved into SnO₂, isostructural solid solution is formed and oxygen vacancy is not created. However, Sn interstitials and Sn vacancies can be formed near the grain boundaries due to the substituted Sn⁴⁺. Based on these relationships, the grain boundary diffusion can be enhanced by the solid solution process at a low temperature, as suggested by Bueno et al [2].

As described above, the three systems of SnO₂-CuO, SnO₂-CoO, and SnO₂-TiO₂ have the same densification mechanism as the grain boundary diffusion at a low temperature. Grain boundary diffusion is well known to have higher temperature sensitivity than lattice diffusion. Therefore, in the context of the three systems considered herein, densification can be synergistically produced at a low temperature. In the present systems, the three additives of CuO, CoO, and TiO₂ were seen to have a synergistic effect on the densification for SnO₂ at a low temperature of 950°C, using the temperature sensitivity for the grain boundary diffusion. As seen in Fig. 2, the densities improved with increasing TiO₂ content.

3.3 Microstructure

For application to a gas sensor based on SnO₂, it is desirable to have a porous structure that has porosity of more than 40% [2]. Based on the theoretical density (ρ = 6.94 g/cm³) of the SnO₂-CuO sample calculated using the mixture rule, the current samples have ~ 40% porosity, as can be seen in Fig. 2. Fig. 3 shows the BET surface areas of samples with varying TiO₂ content. In general, the BET surface area decreased with increasing TiO₂ content. This is considered to be the reason why the sample density increased with increasing TiO₂ content. Fig. 4 shows a nitrogen adsorption isotherm plot of the samples. The adsorption curves exhibited an abrupt increment at the high pressure range (> 0.9 P/P_o) for all samples, indicating the formation of a porous structure in all samples. These results are consistent with those reported for a porous nanocrystalline of SnO₂ by Y. Zong et al [9].

Altogether, introducing porosity into materials resulted in decreased density, which degraded the mechanical strength of the materials. For nearly all applications of porous materials, it is desirable to have both high mechanical strength and high porosity. The mechanical strength for porous materials depends on many parameters, including the grain size, grain bond area, pore size distribution, and porosity [10]. The pore size distribution of the present samples is shown in Fig. 5. All samples appear to have nearly constant pore size distributions. Therefore, grain size and porosity can be considered to have made main contributions to the mechanical strength of the current samples. As can be seen in Fig. 2, porosity decreased with increasing TiO₂ content. As shown in Fig. 6, the grain sizes for the samples without and with TiO₂ were measured as 172 and 132 nm, respectively. Thus, grain size decreased in the presence of TiO₂. Fig. 6 shows the fractured surfaces of samples with and without TiO₂. It can be seen that both samples have a porous structure. Therefore, the addition of TiO₂ appears to be very useful for controlling the porosity and strength of this porous body.

3.4 Dielectric constant

Dielectric constant is an important parameter for a gas sensing material [1, 11-13]. Fig. 7 shows the relative dielectric constants for the present samples with varying frequencies at room temperature. The static dielectric constants of SnO₂ are 24.0 and 23.4 for directions parallel and perpendicular to the tetragonal c-axis, respectively [14]. At the low frequency range below 1kHz, the dielectric constants of all samples were noticeably improved compared to the static dielectric constant. By contrast, the dielectric constant of the samples decreased nearly to the static dielectric constant at high frequencies > 1 kHz.

Based on the theory of dielectric polarization, there are two polarization processes, including the rotation direction polarization (RDP) process and the space charge polarization (SCP) process [11, 12, 15, 16]. In the case of the RDP process, oxygen vacancies play a role in enhancing the dielectric constant. The oxygen vacancies can exist in the interior and grain boundary of the present samples due to the addition of CoO. The oxygen vacancies can be ionized and then form single and/or double ionized vacancies. Because of this, a large amount of dipole moment can be produced by the combination between positive oxygen vacancies and negative oxygen ions. These dipoles have random directions and cannot be polarized without external electric field. In the presence of external electric field, these dipoles can be poled toward the direction of the external field, inducing the RDP process. The SCP process can also contribute to improving the dielectric constant. There are a lot of defects at grain boundaries in the bulk. Upon the application of external electric field, the space charge in the bulk will move toward the grain boundaries, after which the charges can be trapped by the many defects existing at the grain boundaries, thus inducing a dipole moment. However, at the high frequency range of > 1 kHz, the dielectric response of the RDP and SCP process can break down. Therefore, the dielectric constant of the current samples approached the static dielectric constant. This result is consistent with those obtained in previous investigations [11, 12]. The above result suggests that the densification mechanism for the current samples is the grain boundary diffusion.

4. Conclusions

It is very difficult to densify pure SnO₂ with a non-densifying mechanism, even at high temperatures >1400°C. This poor densification property means that SnO₂ can be a useful foundation in the fabrication of porous materials. Materials with a porous microstructure with a porosity of >40% are mostly used as electronic devices based on SnO₂. In the case of pure SnO₂, a high sintering temperature of >1300°C is required to obtain a porosity of > 40%. Therefore, this investigation aimed to both lower the required sintering temperature and enhance the densification, while maintaining a porosity of ~40%. The sample compositions were determined as SnO₂-CoO(0.3wt%)-CuO(1wt%) with varying TiO₂ contents. The composition appeared to take on the synergistic effect of the grain boundary diffusion during sintering, which is considered to be the reason why the temperature sensitivity of the grain boundary diffusion is higher than that of lattice diffusion. Following the heat-treatment of 950°C for 8h, porous microstructures with a porosity of ~40% were ultimately achieved. This indicates that the synergistic effect of the solid solution and the activator for Sn_1-xTi_xO₂ - CoO(0.3wt%)-CuO(1wt%) samples led to better densification at the low temperature of 950°C.

Acknowledgements

This research was supported by a Grant from 2023 Research Funds of Andong National University.

Fig. 1.

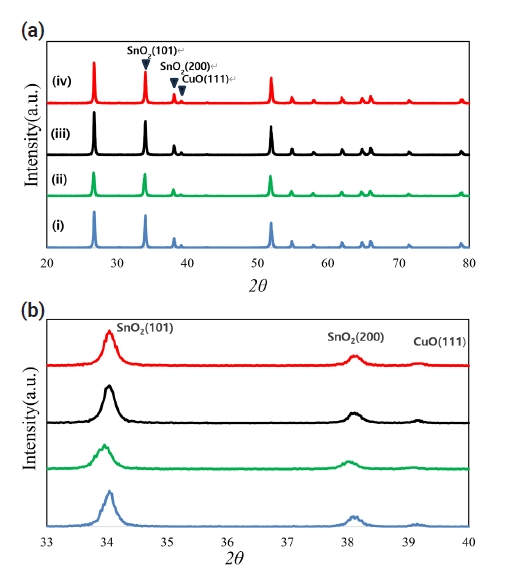

X-ray diffraction patterns of Sn_1-xTi_xO₂-CoO(0.3wt%)-CuO(1wt%) samples: (a) (i) x = 0, (ii) x = 0.01, (iii) x = 0.02, and (iv) x = 0.04; (b) detailed view of the region of 33 – 40°, sintered at 950°C for 8 h.

Fig. 2.

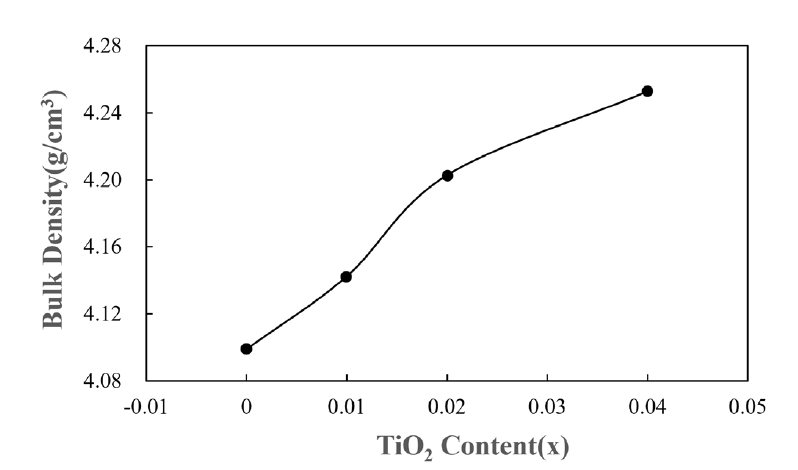

Sintered densities of Sn_1-xTi_xO₂-CoO(0.3wt%)-CuO(1wt%) samples with TiO₂ content, sintered at 950°C for 8 h.

Fig. 3.

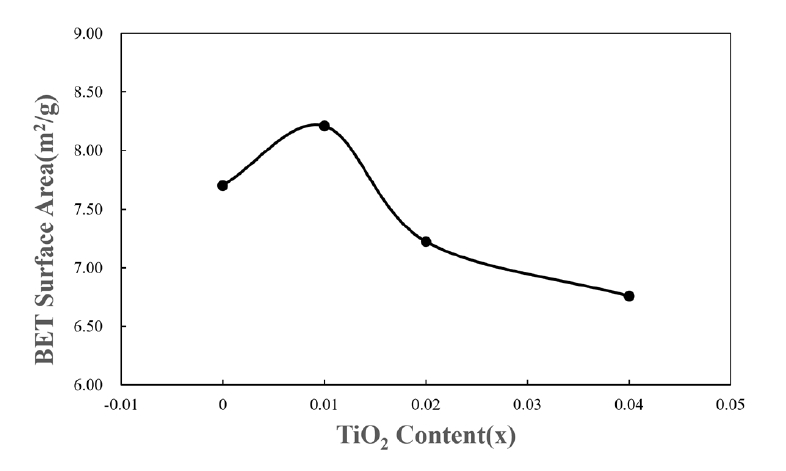

Brunauer-Emmett-Teller (BET) surface areas of Sn_1-xTi_xO₂-CoO(0.3wt%)-CuO(1wt%) samples with TiO₂ content, sintered at 950°C for 8 h.

Fig. 4.

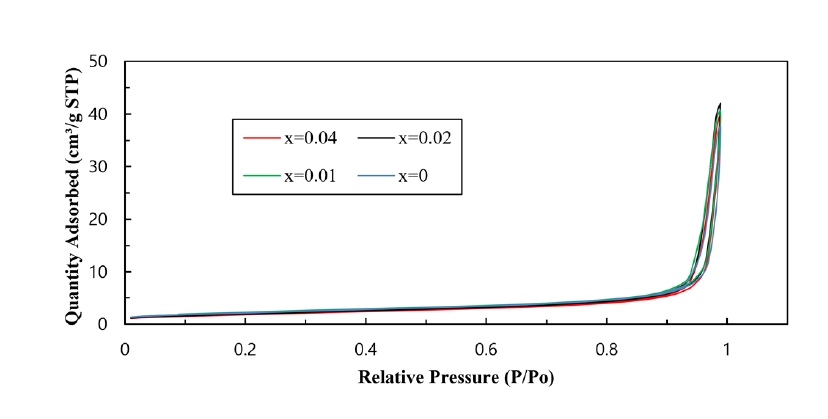

Nitrogen adsorption isotherm of Sn_1-xTi_xO₂-CoO(0.3wt%)-CuO(1wt%) samples with TiO₂ content, sintered at 950°C for 8 h.

Fig. 5.

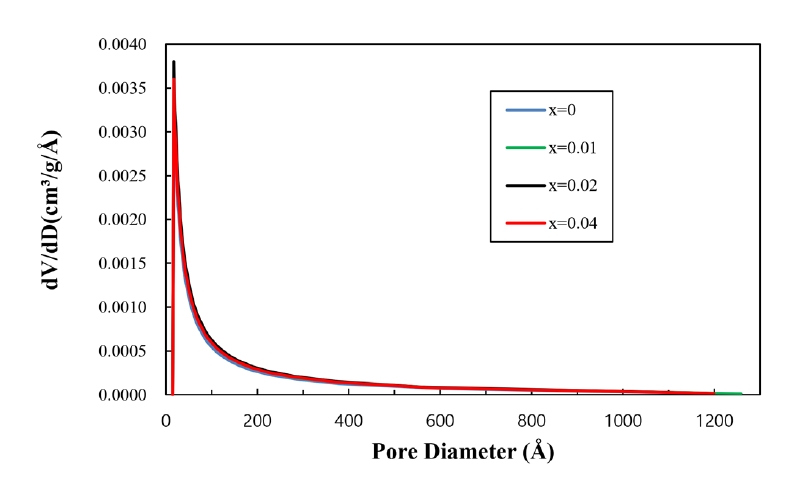

Adsorption pore size distributions of Sn_1-xTi_xO₂-CoO(0.3wt%)-CuO(1wt%) samples with TiO₂ content, sintered at 950°C for 8 h.

Fig. 6.

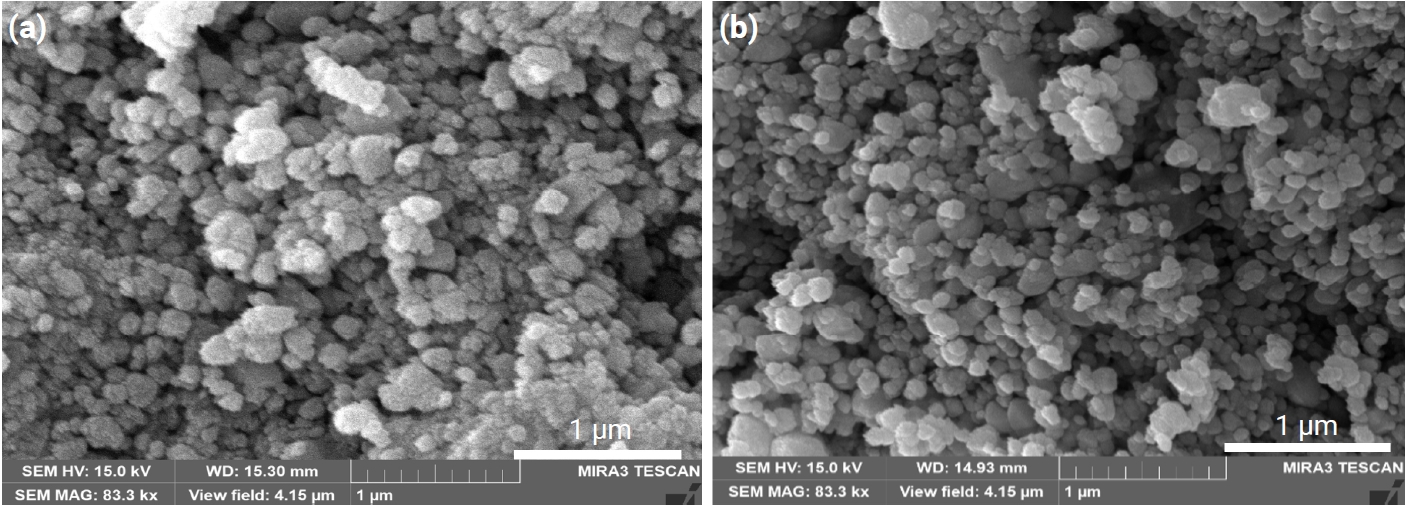

Scanning electron microscopy (SEM) images of fractured surfaces of Sn_1-xTi_xO₂-CoO(0.3wt%)-CuO(1wt%) samples, sintered at 950°C for 8 h: (a) x = 0 and (b) x = 0.04.

Fig. 7.

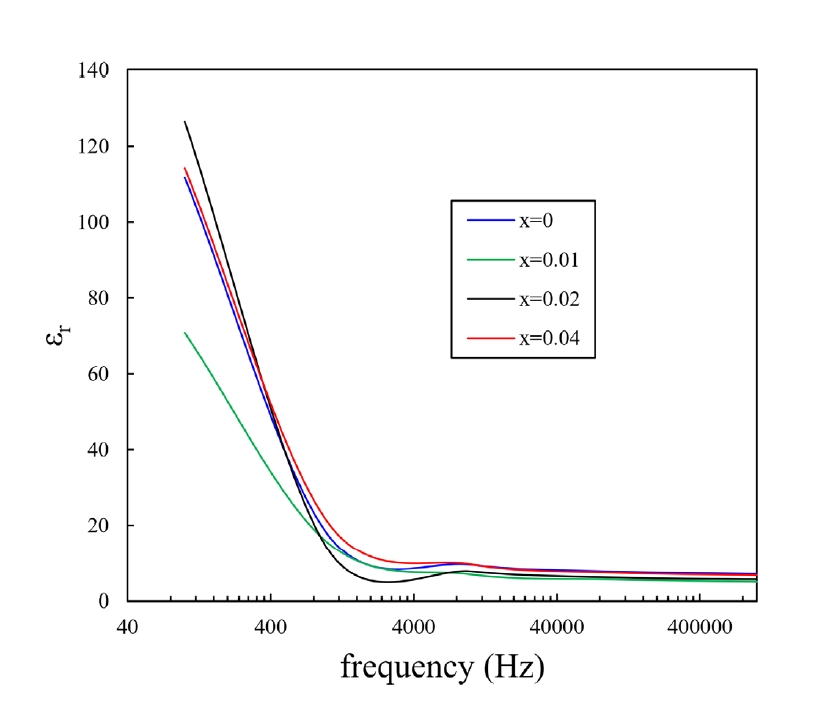

Dielectric constants with various frequencies of Sn_1-xTi_xO₂-CoO(0.3wt%)-CuO(1wt%) samples at room temperature, sintered at 950°C for 8 h.
