1. Introduction

Powder injection molding (PIM) is a productive and widely used technique for net-shaping metal and ceramic components. This technique combines the advantages of both plastic injection molding technology and traditional powder metallurgy technology, producing high performance component, tight tolerance, shape complexity and low production cost [1]. Due to these advantages, PIM is applicable to various uses, such as mechanical components, biomedical components, etc. As shown in Fig. 1, there are four main steps in PIM process, which are mixing, injection molding, debinding, and sintering. In this research, we aimed to find the way to manufacturing glass components using commercial glass powder through PIM process.

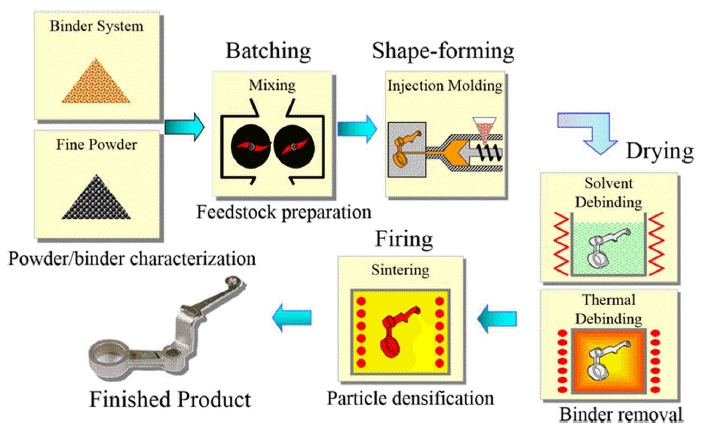

Fig. 1

Schematic diagram of PIM process.

The definition of glass in ASTM is that an inorganic product of fusion which has been cooled to a rigid condition without crystallization. Also glass is an amorphous solid material which is typically brittle and optically transparent [2]. Nowadays, glass becomes an essential material for human beings, which can be found everywhere. In addition, the application range of glass becomes wider and wider, which includes daily supplies, architecture, medical devices, chemistry, electrics, instruments and nuclear engineering, etc. As the daily developing of technologies and increasing demand of people, more and more special glass component with complex shape, high performances and energy-saving process are required.

People usually prepare glass components by melting the glass into liquid and cooling it to get final product. The processes always includes preprocess for raw material, preparation of batch, founding, molding and heat treatment [2]. However, fabricating glass components by sintering also becomes a hot issue today. Sintering is a thermal treatment for bonding the particles into a coherent, solid mass based on atomic diffusion. Sintering densification usually occurs close to the melting temperature for the material. The bonds between particles grow by the motion of individual atoms via either solid-state or liquid-phase events [1]. Since the sintering temperature for materials always shows out lower than their melting point, it is often chosen as the shaping process for many ceramic materials especially which with high melting points.

Glass also can be fabricated with sintering instead of traditional fusing method and lots of related researches have been carried out [3-10]. Fabricating glass by sintering allows formation for complex shapes and reduction of technological temperature. Also, sintering technology gives a high level of purity and uniformity in starting materials and a capability to produce nearly net-shaped glass objects in simper subsequent process.

The plasma display panel (PDP) glass is a very important material to manufacture the displays, which can be found everywhere in today’s human life and industries. The plasma displays are usually brighter than other types of displays and have a wide color gamut because it has the small cells containing the electrically charged ionized gases working in plasma display. Through studying on the manufacturing of PDP glass by sintering, a manufacturing method under a low temperature, the advantages from operating at lower temperature can be achieved and wider industrial applications for sintered glass components can be expanded.

In this study, the PIM process has been developed to fabricate the PDP glass bodies. The glass compacts were prepared by the press-sinter route using pressureless sintering. After sintering, hot isostatic pressing (HIP) process was carried out as a post-process aimed at improving the density and mechanical properties of PIMed glass bodies. Also, the mechanical properties and thermal expansion coefficient of prepared samples were characterized.

2. Experiments

2.1. Materials

The glass powder used in this research is PDP powders with main composition of SiO₂-B₂O₃-Al₂O₃. This powder has a mean particle size of 2.37 μm, melting point of 919°C and thermal expansion coefficient of (80 ± 5) × 10⁻⁷/°C. The morphology of this powder is shown in Fig. 2, which was observed under a scanning electron microscope (SEM). The powder was produced by milling process, which showed an irregular shape with a relatively wide particle size distribution. The apparent density, tap density and pycnometer density for the powder were measured showing the value of 0.72 g/cm³, 0.98 g/cm³, and 2.87 g/cm³ in sequence.

Fig. 2

The images of PDP glass powder: (a) As-received powder image, (b) SEM image.

A wax-polymer binder system consisting of paraffin wax (PW), polypropylene (PP), polyethylene (PE) and stearic acid (SA) was used. The thermal properties of binder system can play important role to total PIM process. The physical properties of each binder component were listed in Table 1.

Table 1

Physical properties of binders

Property	PW	PP	PE	SA
Density (g/cm3)	0.92	0.92	0.93	0.95
Melting temperature (°C)	51	78	120	53
Decomposition temperature (°C)	242-280	464-481	464-471	246-275

2.2. Experimental procedure

2.2.1. Mixing

In order to get a homogeneous mixture of powders and binders, besides powder characteristics and binder composition, the ratio of powder to binder is also important. Too little binder results in a high viscosity and trapped air pockets that make for molding difficulties. On the contrary, excess binder separates from the powder in molding, leading to flashing or inhomogeneity in the molded part [1]. In this work, torque rheometer experiment was carried out to find out the critical solid loading percentage. The powder and binders were mixed in a twin-screw mixing chamber (see Fig. 3) at a temperature of 150°C and a mixing speed of 150 rpm. The glass powder was added into the fixed amount of binders with an increment of 1 vol.% of solid loading and the mixing torque was recorded. The procedure was repeated until the mixing torque rapidly increased, which represented the critical solid loading point. Considering the flexibility in PIM process, the optimal solid loading was selected as 2 vol.% lower than critical solid loading point.

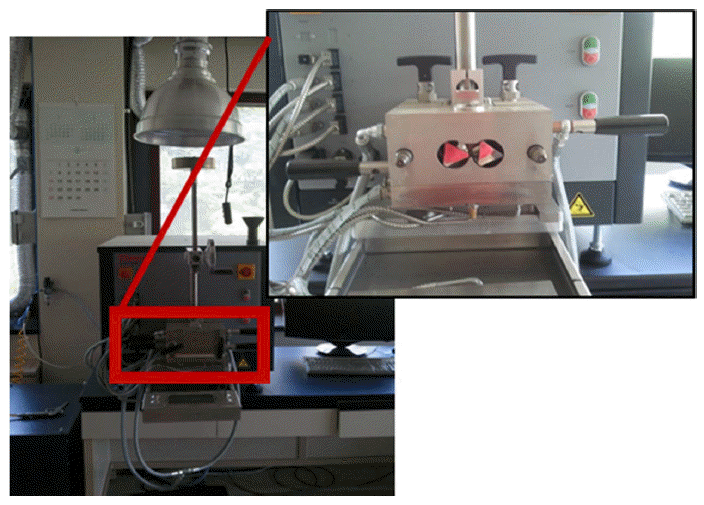

Fig. 3

Torque rheometer with twin-screw mixing chamber.

After determining the optimal solid loading, the mixing process was carried out using a twin-screw extruder type mixer under the mixing speed of 30 rpm, mixing temperature of 150°C, and optimal powder loading of 56 vol.%. The same mixing procedure was performed three times to ensure the homogeneity of feedstock.

2.2.2. Injection molding

The mixed feedstock was injection molded into 3-point bending specimens using a PIM specialized injection molding machine which had a maximum clamping force of 30 ton. The injection molding was performed under 10 mm/s of injection speed, 600 kg/cm² of injection pressure, 160°C of injection temperature and 35°C of mold temperature.

2.2.3. Debinding

Debinding is always done before sintering, since the binder becomes a disposable component after molding. In this research, in order to totally remove the binder, both solvent debinding and thermal debinding were performed to remove the PW and backbone polymers (PP and PE) in sequence. Solvent debinding process was carried out in 60°C n-hexane acid bath for 12 hours.

Before thermal debinding, in order to find out the optimal debinding cycle, thermal gravity analysis (TGA) was performed from 30°C to 700°C with heating rate of 5°C/ min under 50 ml/min purged high purity argon gas. Regarding to the TGA result, the debinding cycle was determined as shown in Fig. 4. A slow heating rate of 1°C/min was selected and it was held at 240°C, 450°C, and 530°C for 2 hours, respectively. Also, the high purity argon gas was continuously flowed with a flow rate of 1.5 L/min to sweep the vaporized binders. The weight loss after solvent and thermal debinding was carefully recorded to measure the amount of debound binders.

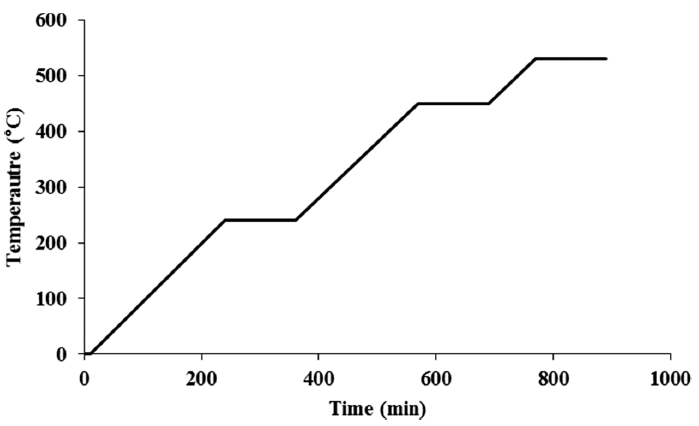

Fig. 4

Temperature profile for thermal debinding.

2.2.4. Sintering and HIP

The debound sample was sintered at 700°C for 2 hours with a heating rate of 2°C /min in oxygen atmosphere using a tube-type atmospheric sintering furnace. In order to improve the density and mechanical properties of sintered glass body, HIP was carried out as the post process. The sintered glass body was HIPed at 700°C for 3 hours with a pressure of 80 MPa in argon atmosphere.

2.2.5. Sample characterization

The mechanical properties of both PIMed and HIPed glass samples were tested through 3-point bending tests, and their flexural strength was compared to study the effect of HIP process on improving the physical properties of sintered sample. The thermal expansion coefficient of HIPed sample was measured through the dilatometry experiment. Firstly, the sample was heated to 400°C by a heating rate of 5°C/min, then it was cooled from 400°C to room temperature by a cooling rate of 5°C /min. The shrinkage occurred during cooling stage was recorded. By fitting the relationship between temperature and shrinkage the thermal expansion for HIPed sample was achieved.

3. Result and Discussions

3.1. Determination of critical solid loading

Fig. 5 showed the increment of stabilized torque value at different solid loadings ranging from 53 to 64 vol.%. At first, the torque increased slightly with increasing of powder loading, then after the solid loading reached 58 vol.%, the torque increased rapidly with increasing of powder loading indicating the critical solid loading point was 58 vol.%. In PIM, usually the optimal loading is approximately 2 to 5 vol.% lower than critical one. This reflects the need for process flexibility and recognizes the reality of lot-to-lot variations in powders and binders [1]. In this work, the optical solid loading is set 2 vol.% below the critical one with value of 56 vol.%.

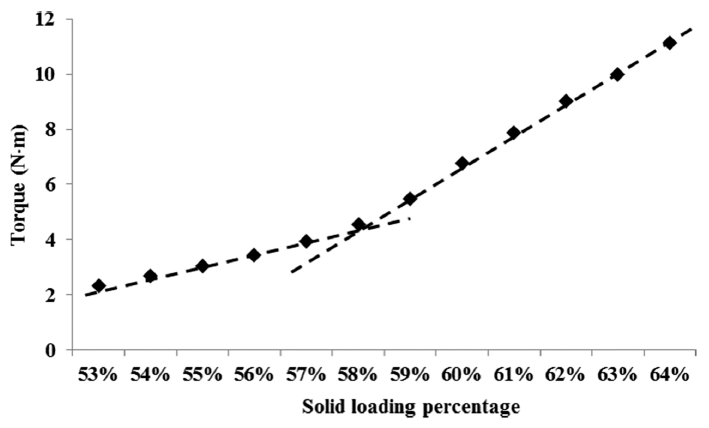

Fig. 5

The torque of glass feedstock at different solid loading percentage.

3.2. Binder removal in debinding process

A two-step debinding method, including solvent debinding and thermal debinding, was performed. The filler binder (PW) was firstly removed by solvent debinding, then the thermal debinding was followed to easily remove the residual filler binder and backbone binders (PP and PE) through the open pores and channels formed after solvent debinding process.

Table 2 showed the weight loss of PW before and after solvent debinding. It indicated that totally 86% of PW was debound after 12 hours’ bath in solvent, and the residual 14 % of PW would be removed during thermal debinding.

Table 2

Weight loss after solvent debinding

	Injection molded	Solvent debound	Debound PW
Mass (g)	2.92	2.58	0.34 (86 % of total PW)

To study the binder decomposition behavior during thermal debinding process, the TGA experiment for prepared glass feedstock has been carried out. Fig. 6(a) showed the weight loss of prepared glass feedstock as temperature increasing from 30 to 700°C. There were two sigmoids decomposition function showing the binders were removed by two stages. The first sigmoid was related to the decomposition of filler binder (PW and SA), which had a relatively lower decomposition temperature, and the second sigmoid was related to the decomposition of backbone binder (PP and PE), which had a relatively higher decomposition temperature. Fig. 6(b) showed the weight loss rate of prepared glass feedstock. The maximum weight loss rate for first and second sigmoid occurred at 236 and 446°C, respectively. According to this, the holding temperatures during thermal debinding process were determined at the slightly higher temperature of 240 and 450°C, respectively, to fully remove the remained filler binder and backbone binder in injection molded parts.

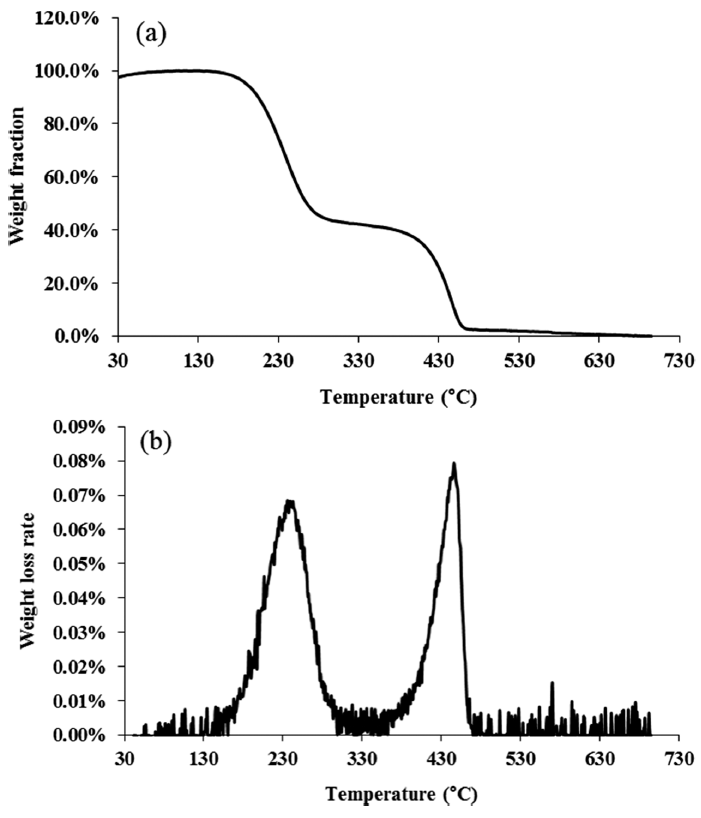

Fig. 6

TGA results for prepared glass feedstock: (a) Weight loss, (b) Weight loss rate.

Table 3 showed the weight loss of binder after thermal debinding process. It indicated that almost all binder (99.6% of total binder) has been removed successfully by two-step debinding process, which was one of the most important point in glass PIM process to get a translucent/ transparent glass component.

Table 3

Weight loss after thermal debinding

	Injection molded	Solvent debound	Thermal debound	Debound binder
Mass (g)	2.92	2.58	2.28	0.64 (99.6 % of total binder)

3.3. Sample characterization

3.3.1. Physical property

After sintering at 700°C for 2 hours in oxygen atmosphere, the relative density of sintered glass body was 92%, which was a relatively low value mainly due to the poor sinter-ability of glass powders. However, after HIP treatment, the density of HIPed glass body was increased from 92% to 98%. Fig. 7(a) and (b) showed the microstructures of cross-section of sintered and HIPed samples observed by optical microscope. Some large and small round pores existed after sintering leading to a low sintered density. After HIP process, the sintered body was furtherly densified, where the pores were largely eliminated and pore size became much smaller.

Fig. 7

Microstructures of cross-section of fabricated glass samples: (a) Sintered body, (b) Sinter-HIPed body.

3.3.2. Mechanical property

The mechanical property of PIMed glass body was evaluated by 3-point bending test. The result was compared to that of fused glass body which is the traditional way to make glass component. The process for making fused glass was that melting the glass powder under 1200°C and cooling to room temperature in air. Fig. 8 showed the results of bending tests of PIMed and fused glass samples. It showed that the average flexural strength for PIMed and fused glass samples were 42.31 MPa and 72.42 MPa, respectively. The main reason for lower strength of PIMed sample was that more pores existed in sintered sample (Fig. 7(a)) which lead to easier crack produce and propagation resulting in lower bending strength. However, after HIP treatment, the flexural strength increased to 92.17 MPa (Fig. 9), which was 1.273 times (127.3%) of the fused glass samples and 2.178 times (217.8%) of PIMed samples without HIP process.

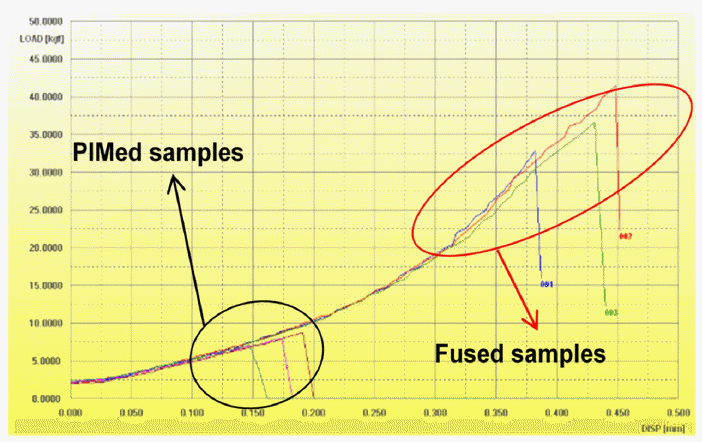

Fig. 8

Results of bending test for PIMed and fused samples (load vs. displacement).

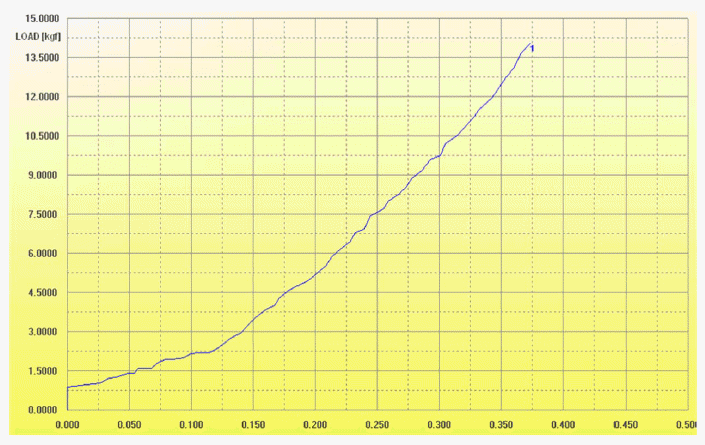

Fig. 9

Results of bending test for PIM-HIPed sample (load vs. displacement).

3.3.3. Thermal expansion coefficient

Thermal property is one of the most important for glass components. When a glass is heated, it generally expands. If the temperature over the body of glass is equal everywhere and the body is not restrained, then there will be no development of stress in the body. On the other hand, there were non-uniform heating over the body, and then the different layers of glass would attempt to expand differently. The enforcement of the compatibility criteria results in a different set of dimensional changes and stresses develop. The tensile stress components could lead to glass failure [2].

Linear thermal expansion was measured using a pushrod dilatometer in this work. Based on the definition of linear thermal expansion coefficient, the thermal expansion coefficient α_L can be calculate by the equation as below:

(1)

αL=ΔLL⋅ΔT

In Eq. (1), α_L means linear thermal expansion coefficient, ΔL means the change of length, L means the initial length and ΔT means the change of temperature. For calculating the thermal expansion coefficient of sinter- HIPed glass samples, data from 450~150°C in cooling process was used for analyzing the coefficient. Also, as we can see in Eq. (1), ΔL/L means the shrinkage rate, so the value of linear thermal expansion coefficient can be calculate as the slope of temperature vs. shrinkage. By fitting the data from 450~150°C the coefficient was calculated as shown in Fig. 10. The fitted value was 7.82 × 10⁻⁶/°C, which matched well with the thermal coefficient of raw glass powder provided by the powder vendor (7.5~8.0 × 10⁻⁶/°C) indicating by PIM-HIP process the glass body was almost fully densified and the manufacturing process was reasonable.

Fig. 10

Thermal expansion coefficient of fabricated glass sample.

4. Conclusions

The PDP glass component has been fabricated by PIM technology using a wax-polymer binder system. The PIM process has been developed and optimized including determination of optimal solid loading and debinding conditions. The relative density for sintered glass body was 92%, however, after HIP treatment it increased to 98%. The flexural strength for PIMed was 42.31 MPa, and it increased to 92.17 MPa after HIP treatment, which was 1.273 times of the fused glass sample (72.42 MPa). The thermal expansion coefficient of fabricated glass sample was 7.816 × 10⁻⁶/°C, a value matched well with the thermal coefficient of raw powder (7.5~8.0 × 10⁻⁶/°C) indi- cating that the glass body was well fabricated by PIMHIP process with the proper processing conditions.

Acknowledgements

Acknowledgements

This research was supported by the National Research Foundation of Korea (NRF) grant funded by the Korea government (MSIP) (No. 2011-0030075).

• 1. R. M. German and A. Bose: Injection Molding of Metals and Ceramics, Metal Powder Industries Federation, New Jersey (1997).
• 2. Arun K. Varshneya: Fundamentals of Inorganic Glasses, New York State College of Ceramics Alfred University & Saxon Glass Technologies, Inc., New York (2006).
• 3. D. Lin, S. Yi, J. Heo, J. Lee, R. M. German and S. J. Park: Ceram. Int., 41 (2015) 5057. Article
• 4. E. M. Rabinovich: J. Mater. Sci., 20 (1985) 4259. Article
• 5. H.-N. Choi and Y.-S. Kim: Microsyst. Technol., 11 (2005) 404. Article
• 6. D. Hiratsuka, J. Tatami, T. Wakihara, K. Komeya and T. Meguro: J. Ceram. Soc. Jpn., 115 (2007) 392. Article
• 7. J. Zhang, R. Tu and T. Goto: Ceram. Int., 38 (2012) 4961. Article
• 8. L. H. Wang and B. J. Tsai: Mater. Lett., 43 (2000) 309. Article
• 9. S.-L. Fu, L.-S. Chen and J.-H. Chou: Ceram. Int., 20 (1994) 67. Article
• 10. O. Yong-Taeg, S. Fujino and K. Morinaga: Sci. Technol. Adv. Mater., 3 (2002) 297.Article
